Abstract

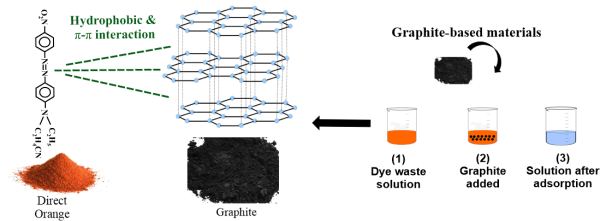

The layered double hydroxide-based material features of Ca/Al have improved according to the adsorption capacity and structure stabilization by transforming into composite Ca/Al-graphite. The composite was synthesized by co-precipitation method, and the chemical structure was characterized using X-ray Diffraction (XRD), Fourier Transform Infra-red (FT-IR), Brunauer Emmet-Teller (BET) Surface Area, and Thermo-Gravimetry Differential Analyse (TG-DTA). The XRD analysis of Ca/Al-Graphite composite was noticed in 10.205°(003), 18.083°(012), 20.45°(004), 26.532°(002), 44.52°(101), 54.52°(004), and 77.38°(006). The TG-DTA analysis of the composite was noticed at 100°C as water molecule decomposition, 270°C as nitrate decomposition, and 700 and 760°C as graphite decomposition to the oxide form. BET surface area analysis of Ca/Al-Graphite composite achieved the highest surface area at 16.795 m2/g. According to the kinetic parameter, the adsorption of direct orange to composite follows the pseudo-second-order model. The isotherm parameter of direct orange adsorption onto the composite followed the Langmuir model and occurred spontaneously and endothermically. The regeneration study proved the composite effective in 3 cycles by adsorption percentage at the third cycle reached 73.559%.

Keywords

References

  1. Botan, R. and S. de Bona Sartor (2020). X-Ray Diffraction Analysis of Layered Double Hydroxide Polymer Nanocomposites. In Layered Double Hydroxide Polymer Nanocomposites. Elsevier; 205–229
  2. Cardinale, A. M., M. Fortunato, F. Locardi, and N. Parodi (2022). Thermal Analysis of MgFe-Cl Layered Doubled Hydroxide (LDH) Directly Synthetized and Produced “Via Memory Effect”. Journal of Thermal Analysis and Calorimetry, 147(9); 5297–5302
  3. Chung, H.-K., W.-H. Kim, J. Park, J. Cho, T.-Y. Jeong, and P.-K. Park (2015). Application of Langmuir and Freundlich isotherms to Predict Adsorbate Removal Efficiency or Required Amount of Adsorbent. Journal of Industrial and Engineering Chemistry, 28; 241–246
  4. Coimbra, R., V. Calisto, C. Ferreira, V. Esteves, and M. Otero (2019). Removal of Pharmaceuticals from Municipal Wastewater by Adsorption Onto Pyrolyzed Pulp Mill Sludge. Arabian Journal of Chemistry, 12(8); 3611–3620
  5. Cychosz, K. A. and M. Thommes (2018). Progress in the Physisorption Characterization of Nanoporous Gas Storage Materials. Engineering, 4(4); 559–566
  6. Czatzkowska, M., I. Wolak, M. Harnisz, and E. Korzeniewska (2022). Impact of Anthropogenic Activities on the Dissemination of ARGs in the Environment—A Review. International Journal of Environmental Research and Public Health, 19(19); 12853
  7. Dinari, M., H. Allami, and M. M. Momeni (2020). A High-Performance Electrode Based on Ce Doped Nickel-Cobalt Layered Double Hydroxide Growth on Carbon Nanotubes for Efficient Oxygen Evolution. Journal of Electroanalytical Chemistry, 877; 114643
  8. Dutta, S., B. Gupta, S. K. Srivastava, and A. K. Gupta (2021). Recent Advances on the Removal of Dyes from Wastewater using Various Adsorbents: A Critical Review. Materials Advances, 2(14); 4497–4531
  9. Freundlich, H. (1907). Über Die Adsorption in Lösungen. Zeitschrift Für Physikalische Chemie, 57(1); 385–470
  10. Hakim, Y. M., R. Mohadi, M. Mardiyanto, and I. Royani (2023). Ammonium-Assisted Intercalation of Java Bentonite as Effective of Cationic Dye Removal. Journal of Ecological Engineering, 24(2); 184–195
  11. Hanifah, Y., R. Mohadi, M. Mardiyanto, and A. Lesbani (2023). Polyoxometalate Intercalated MgAl-Layered Double Hydroxide for Degradation of Malachite Green. Ecological Engineering & Environmental Technology, 24(2); 109–119
  12. Hong, J., W. Zhang, Y. Wang, T. Zhou, and R. Xu (2014). Photocatalytic Reduction of Carbon Dioxide Over Self-Assembled Carbon Nitride and Layered Double Hydroxide: The Role of Carbon Dioxide Enrichment. ChemCatChem, 6(8); 2315–2321
  13. Hu, H., S. Wageh, A. A. Al-Ghamdi, S. Yang, Z. Tian, B. Cheng, and W. Ho (2020). NiFe-LDH Nanosheet/Carbon Fiber Nanocomposite with Enhanced Anionic Dye Adsorption Performance. Applied Surface Science, 511; 145570
  14. Hussain, S., N. Khan, S. Gul, S. Khan, and H. Khan (2020). Contamination of Water Resources by Food Dyes and its Removal Technologies. Water Chemistry; 1–14
  15. Kanungo, S. and S. Mishra (1996). Thermal Dehydration and Decomposition of FeCl3????H2O. Journal of Thermal Analysis, 46; 1487–1500
  16. Krewski, D., M. Bird, M. Al-Zoughool, N. Birkett, M. Billard, B. Milton, J. M. Rice, Y. Grosse, V. J. Cogliano, and M. A. Hill (2019). Key Characteristics of 86 Agents Known to Cause Cancer in Humans. Journal of Toxicology and Environmental Health, Part B, 22(7-8); 244–263
  17. Langmuir, I. (1916). The Constitution and Fundamental Properties of Solids and Liquids. Part I. Solids. Journal of the American Chemical Society, 38(11); 2221–2295
  18. Lim, K., J. Kim, and J. Lee (2019). Comparative Study on Adsorbent Characteristics for Adsorption Thermal Energy Storage System. International Journal of Energy Research, 43(9); 4281–4294
  19. Mahmoud, R. K., M. Taha, A. Zaher, and R. M. Amin (2021). Understanding the Physicochemical Properties of Zn–Fe LDH Nanostructure as Sorbent Material for Removing of Anionic and Cationic Dyes Mixture. Scientific Reports, 11(1); 21365
  20. Malak-Polaczyk, A., C. Vix-Guterl, and E. Frackowiak (2010). Carbon/Layered Double Hydroxide (LDH) Composites for Supercapacitor Application. Energy & Fuels, 24(6); 3346–3351
  21. Malima, N., S. Owonubi, E. Lugwisha, and A. Mwakaboko (2021). Thermodynamic, Isothermal and Kinetic Studies of Heavy Metals Adsorption by Chemically Modified Tanzanian Malangali Kaolin Clay. International Journal of Environmental Science and Technology, 18(10); 1–16
  22. Mohadi, R., Y. M. Hakim, R. D. Astuti, I. Royani, and M. Mardiyanto (2023). Pillarization of Sumatera Bentonite by Sodium-assisted as Effective Adsorbent of Anionic Surfactants Sodium Lauryl Sulphate (SLS) Waste. Bulletin of Chemical Reaction Engineering & Catalysis, 18(1); 48-58
  23. Mohadi, R., D. Setiawan, and H. Zulkifli (2018). Kinetic and Thermodynamic Adsorption of Cr(VI) onto Dried Oscillatoria Splendida in Aqueous Solution. Science and Technology Indonesia, 3(4); 195–198
  24. Monakhova, K., S. Bazhenov, A. Kechek’yan, and I. Meshkov (2021). Effect of the Size of Particles on Their Adhesion in Composite Polypropylene/SiO2. Polymer Science, Series A, 63; 162–171
  25. Motomura, K. (1978). Thermodynamic Studies on Adsorption at Interfaces. I. General Formulation. Journal of Colloid and Interface Science, 64(2); 348–355
  26. Moyo, M. (2013). Bioremediation of Lead(II) from Polluted Wastewaters Employing Sulphuric Acid Treated Maize Tassel Biomass. American Journal of Analytical Chemistry, 4(12); 689
  27. Normah, N., N. Juleanti, P. M. S. B. N. Siregar, A. Wijaya, N. R. Palapa, T. Taher, and A. Lesbani (2021a). Size Selectivity of Anionic and Cationic Dyes using LDH Modified Adsorbent with Low Cost Rambutan Peel to Hydrochar. Bulletin of Chemical Reaction Engineering & Catalysis, 16(4); 869–880
  28. Normah, N., N. R. Palapa, T. Taher, R. Mohadi, H. P. Utami, and A. Lesbani (2021b). The Ability of Composite Ni/Al-Carbon Based Material Toward Readsorption of Iron(II) in Aqueous Solution. Science and Technology Indonesia, 6(3); 156–165
  29. Pan, Y., Y. Liu, Z. Tu, X. Zhang, Y. Wu, and X. Hu (2022). Highly Efficient Absorption of HCl in Deep Eutectic Solvents and Their Corresponding Ethylene Glycol Blends. Chemical Engineering Journal, 434; 134707
  30. Qasem, N. A., R. H. Mohammed, and D. U. Lawal (2021). Removal of Heavy Metal Ions from Wastewater: a Comprehensive and Critical Review. Npj Clean Water, 4(1); 36
  31. Rashid, R., I. Shafiq, P. Akhter, M. J. Iqbal, and M. Hussain (2021). A State-of-the-Art Review on Wastewater Treatment Techniques: the Effectiveness of Adsorption Method. Environmental Science and Pollution Research, 28; 9050–9066
  32. Sahmoune, M. N. (2019). Evaluation of Thermodynamic Parameters for Adsorption of Heavy Metals by Green Adsorbents. Environmental Chemistry Letters, 17(2); 697–704
  33. Shabanian, M., M. Hajibeygi, and A. Raeisi (2020). FTIR Characterization of Layered Double Hydroxides and Modified Layered Double Hydroxides. In Layered Double Hydroxide Polymer Nanocomposites. Elsevier; 77–101
  34. Siregar, P. M. S. B. N., A. Wijaya, J. P. Nduru, N. Hidayati, A. Lesbani, and R. Mohadi (2022). Layered Double Hydroxide/C (C=Humic Acid; Hydrochar) as Adsorbents of Cr (VI). Science and Technology Indonesia, 7(1); 41–48
  35. Suh, M. J., S. Weon, R. Li, P. Wang, and J. H. Kim (2020). Enhanced Pollutant Adsorption and Regeneration of Layered Double Hydroxide-Based Photoregenerable Adsorbent. Environmental Science & Technology, 54(14); 9106–9115
  36. Taher, T., D. Rohendi, R. Mohadi, and A. Lesbani (2018). Thermal and Acid Activation (TAA) of Bentonite as Adsorbent for Removal of Methylene Blue: a Kinetics and Thermodynamic Study. Chiang Mai Journal of Science, 45(4); 1770–1781
  37. Taher, T., D. Rohendi, R. Mohadi, and A. Lesbani (2019). Congo Red Dye Removal from Aqueous Solution by Acid-Activated Bentonite from Sarolangun: Kinetic, Equilibrium, and Thermodynamic Studies. Arab Journal of Basic and Applied Sciences, 26(1); 125–136
  38. Vinsiah, R., R. Mohadi, and A. Lesbani (2020). Performance of Graphite for Congo Red and Direct Orange Adsorption. Indonesian Journal of Environmental Management and Sustainability, 4(4); 125–132
  39. Walton, K. S. and R. Q. Snurr (2007). Applicability of the BET Method for Determining Surface Areas of Microporous Metal-Organic Frameworks. Journal of the American Chemical Society, 129(27); 8552–8556
  40. Wei, L., F. Zietzschmann, L. C. Rietveld, and D. van Halem (2020). Fluoride Removal by Ca-Al-CO3 Layered Double Hydroxides at Environmentally-Relevant Concentrations. Chemosphere, 243; 125307
  41. Yadav, B. S. and S. Dasgupta (2022). Effect of Time, pH, and Temperature on Kinetics for Adsorption of Methyl Orange Dye Into the Modified Nitrate Intercalated MgAl LDH Adsorbent. Inorganic Chemistry Communications; 109203
  42. Yang, R., Y. Zhou, Y. Xing, D. Li, D. Jiang, M. Chen, W. Shi, and S. Yuan (2019). Synergistic Coupling of CoFe-LDH Arrays with NiFe-LDH Nanosheet for Highly Efficient Overall Water Splitting in Alkaline Media. Applied Catalysis B: Environmental, 253; 131–139
  43. Ye, H., S. Liu, D. Yu, X. Zhou, L. Qin, C. Lai, F. Qin, M. Zhang, W. Chen, and W. Chen (2022). Regeneration Mechanism, Modification Strategy, and Environment Application of Layered Double Hydroxides: Insights Based on Memory Effect. Coordination Chemistry Reviews, 450; 214253
  44. Zhang, G., M. Wen, S. Wang, J. Chen, and J. Wang (2018). Insights Into Thermal Reduction of the Oxidized Graphite from the Electro-Oxidation Processing of Nuclear Graphite Matrix. RSC Advances, 8(1); 567–579
  45. Zhao, A., B. Xiong, Y. Han, and H. Tong (2022). Thermal Decomposition Paths of Calcium Nitrate Tetrahydrate and Calcium Nitrite. Thermochimica Acta, 714; 179264
